Multi-core plastic optic cable Price:¥

Online inquiry
Product Detail

Brand

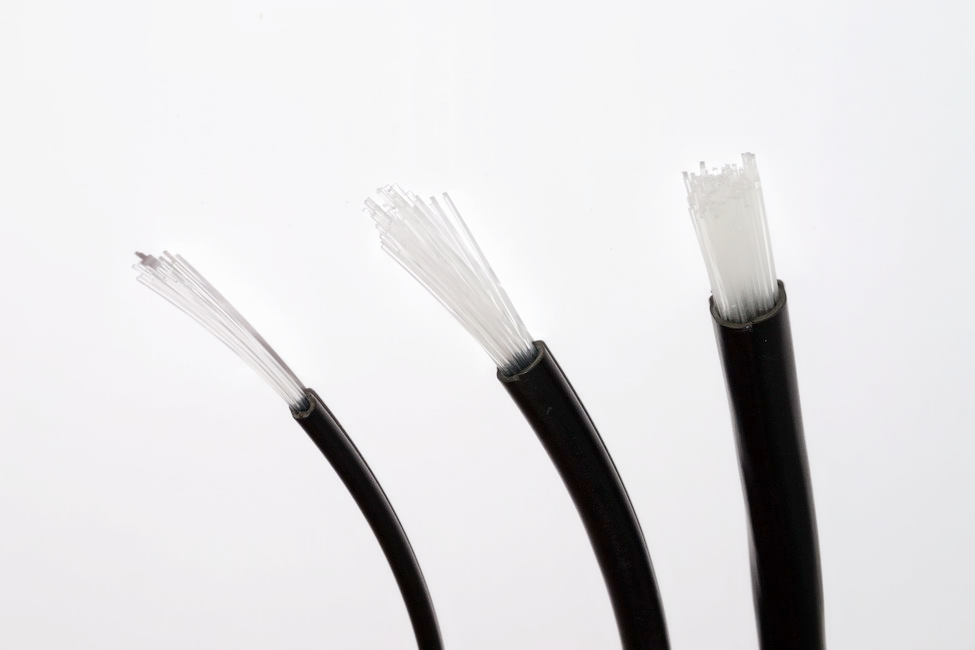

Multi-core plastic optic cable



Product Structure Diagram





Product Overview

Multi-core optical cables are optical fibres that contain more than one core. With the development of the information society, the demand for data transmission has grown significantly, and traditional single-core optical cables are no longer able to meet the increasing demand for data transmission. Therefore, multi-core optical cables have emerged, which can integrate multiple cores into the same optical cable, thereby greatly improving the data transmission capacity of optical fibres.





Product Features

Good flexibility

High coupling efficiency with transceivers

Capable of detecting small objects



Basic parameters

Core Materials

Cladding Material

Optic structure

NA

Core Refractive Index

Jacket Material

Jacket color

PMMA

Fluorinated Polymer

Step index

0.5

1.49

PE

Black, white or custom colours





Product Model

Product Type

Product Type(mm)

Core Diameter(mm)

Core number

attenuation(dB/km)

Operating temperature

 Roll Length (M)

RS-250-4/1.0

0.25

1.0±0.07

4

≤600

-55℃-75℃

500

RS-250-9/1.25

0.25

1.25±0.07

9

≤600

-55℃-75℃

500

RS-250-16/2.2

0.25

2.2±0.07

16

≤600

-55℃-75℃

500

RS-250-16/2.6

0.25

2.6±0.07

16

≤600

-55℃-75℃

500

RS-250-32/2.6

0.25

2.6±0.07

32

≤600

-55℃-75℃

500

Multi-core optical cables with different fibre core counts can be customised according to customer requirements.

Application Areas

Multi-core optical cables are commonly used in various sensor products such as temperature sensors, pressure sensors, displacement sensors, and biosensors.
