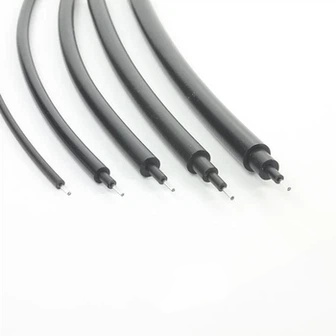

Brand Double covered plastic optic cable/POF cable Number of fibre cores 1 Product Structure Diagram
Product Overview A secondary coating refers to a protective layer applied over the primary coating or buffer layer of an optical fibre. It enhances the fibre's resistance to longitudinal and radial stress and facilitates post-processing of the fibre. It is generally divided into two main categories: loose-fitting coating and tight-fitting coating. |
|
Product Features
Provides stronger protection for optical fibres | Low transmission loss | Strong anti-interference capability |
Product Model
Product Type | Core Diameter（mm) | Cable diameter（mm) | attenuation（dB/km） | Operating temperature | Roll Length (M) |
RS-1000-1/4.0 | 1.0 | 4.0 | ≤200 | -55℃-85℃ | 1000 |
RS-1000-1/5.0 | 1.0 | 5.0 | ≤200 | -55℃-85℃ | 500 |
RS-1000-1/6.0 | 1.0 | 6.0 | ≤200 | -55℃-85℃ | 300 |
RS-1000-1/8.0 | 1.0 | 8.0 | ≤200 | -55℃-85℃ | 100 |
Various diameters of optical cables can be customised according to customer requirements. |
Application Areas
Multimedia audio systems, high-definition audio-visual playback systems, high-definition digital cinemas, and multimedia entertainment systems for automobiles, aircraft, and ships.
