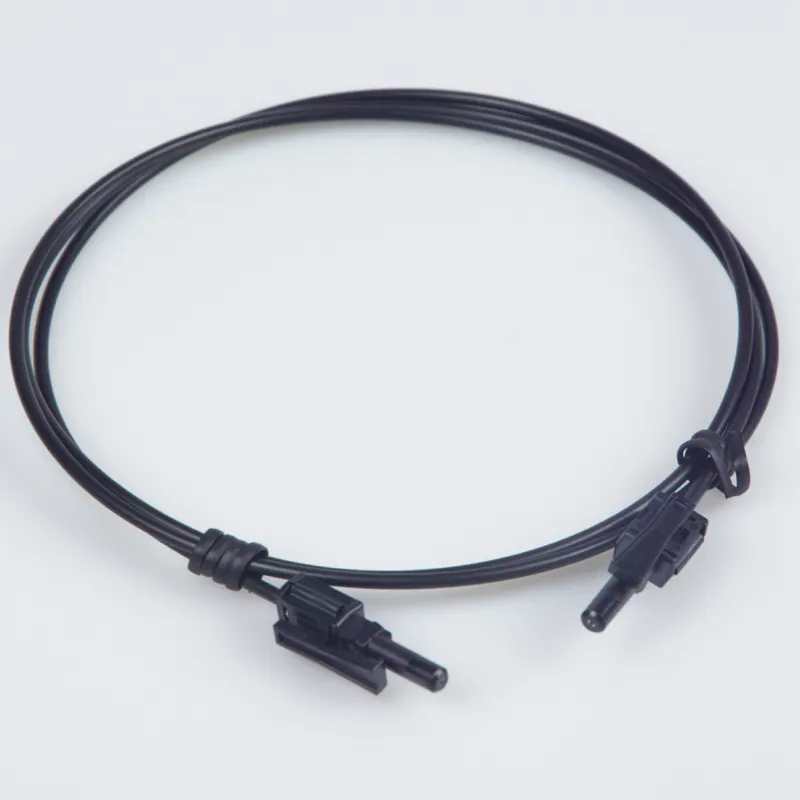

RS-HFBR4532/4532Z (AVAGO HFBR4532/4532Z cables)

Online inquiry

Previous Next

Product Detail

Brand

RS-HFBR4532/4532Z

Product Overview

AVAGO's components, plastic fibre optic modules, and industrial control connectors are widely used in fieldbus, process control, and digital control applications in industrial control. Many internal factory control networks connect controllers, devices, and sensors to monitor data and provide simple control feedback to production lines.

Product Features

Resistance to electromagnetic interference and electromagnetic radiation

High flexibility and vibration resistance ensure zero error rate transmission under any circumstances.

High and low temperature resistance（－55 ~ +85 ℃）

Easy to install, no maintenance required

Plastic optical fibres are non-conductive and can share power transmission lines.

Long-distance power supply

Compatible with Agilent Universal Connection System

Product parameters

Parameter	unit	numerical value
Cables length	m	0.1m-100mcustomisable
Core diameter	mm	Φ1.0；optional Φ0.25、Φ0.50、Φ0.75
Core Materials	/	PMMA
Cable diameter	mm	Φ2.2
Jacket Material		CPE、PE、PVC、PA、TPU、TPR
Jacket color	/	Black, customisable in any other colour
Wavelength	nm	650 or 530
Attenuation	dB/km	＜180
Bend Radius	/	5 times the diameter of the fibre core
NA	/	0.50；optional0.3-0.6
Connector Attenuation	dB	＜0.5
Refractive Index	/	Step index
Tensile strength	N	＞70N
Vibration	/	≤1.0dB（5~50HZ，1.5mm amplitude）
Connector moldTransmission delay constant	ns/m	5ns/m
Connector mold	/	Can be processed into simplex or duplex (depending on the fibre optic module)
Connector type	/	Avago Industrial communication fibre optic connector
operating temperature	℃	-55℃~+85℃

Product Model Table

Product Model	Connector1	Connector2	Fibre core specifications	Fibre core specifications	Optical cable colour	length
RS-HFBR4501Z-HFBR4511Z	HFBR-4501Z	HFBR-4511Z	POF980/1000 (import)	single core	Black/Customisable	customisable
RS-HFBR4503Z-HFBR4513Z	HFBR-4503Z	HFBR-4513Z	POF980/1000 (import)	single core	Black/Customisable	customisable
RS-HFBR4506Z-HFBR4516Z	HFBR-4506Z	HFBR-4516Z	POF980/1000 (import)	single core	Black/Customisable	customisable
RS-HFBR4531Z-HFBR4533Z	HFBR-4531Z	HFBR-4533Z	POF980/1000 (import)	single core	Black/Customisable	customisable
RS-HFBR4532Z-HFBR4532Z	HFBR-4532Z	HFBR-4532Z	POF980/1000 (import)	single core	Black/Customisable	customisable
Depending on the actual application, different types of connectors can be used simultaneously.

Application Areas

Widely used in data transmission and industrial automation control bus systems, industrial robot intelligent systems and servo systems, communication switching systems, digital multimedia systems, medical sensing systems, power systems and other fields.
