Outdoor fiber optic cable for data transmission and communication
PMMA fiber optic cable
1.High bandwith fiber optic cable
2.ISO9001
3.Low attenuation
4.toslink cable
plastic fiber optic cable for data transmission
fiber optic cable,PMMA fiber optic cable
The feature of fiber optic cable
1. Immunity to electromagnetic interference.
2. Using eye-safe visible red light, troubleshooting is quick and easy.
3. Quick and low cost for installation.
4. Light weight, excellent toughness and durability, bending free and easy disposal.
5. Water proof, moisture proof, free of magnetic and thunders.
6. More flexible and cost-effective than copper networking wiring,
The application of fiber optic cable
1. Automobiles (Transmission medium of most data bus).
2. Consumer electronics (CD, DVD, IPTV, CCTV, Intelligent Home, etcs)optical cable
3. Industry control toslink,patch cord
4. LANS, FTTH/FTTD
5. Medical equipment
6. Illumination and decoration
7. Others
| Item |
Unit |
Specification |
Test Method |
|
Structural
parameters
|
Core diameter |
m |
980±60 |
YD/T 1258.6-2006
YD/T1447-2006
GB/T12357.4-2004
|
| Cladding diameter |
um |
1000±60 |
| Numerical Aperture |
NA |
0.5±0.15 |
|
Outer Jacket Diameter
|
mm |
2.20±0.07 |
| Approximate Weight |
gm |
5.2 |
|
| Optical propeties |
Transmission Loss(at
650nm)
|
dB/km |
≤160 |
YD/T 1258.6-2006
YD/T1447-2006
GB/T12357.4-2004
|
|
Mecharical
Characteristics
|
Repeated Bendng
Endurance
|
dB |
Loss Increment≤0.2dB |
| |
Tensile Strength |
N |
260 |
| |
Twisting Endurance |
dB |
Loss Increment≤0.2dB |
| |
Impact Endurance |
dB |
Loss Increment≤0.2dB |
| Flame-retardant
Performance
|
Flame-retardart Rating |
|
VW-1 |
UL758(E56012) |
| Standard |
UL758,ROHS,REACHSGS,YD/T1258.6-2006,YD/T1447—2006,GB/T12357.4-2004 |
Products Model
| RS plastic fiber optic cable specifications |
| Number |
Model |
Core
diameter
(mm) |
Outer
diameter
(mm) |
Attenuation
(dB/km) |
Jacket materia |
Meters/roll |
Temperature
(C) |
remarks |
| 1 |
RS-1000-1BY |
1.0mmx1 |
2.2mm±0.07 |
≤240 |
E(Black+Yellow) |
2500 |
55~85 |
Single care |
| 2 |
RS-1000-1BG |
1.0mmx1 |
2.2mm±0.07 |
<240 |
PE(Black+Green) |
2500 |
55~85 |
Singfe core |
| 3 |
RS-1000-1BR |
1.0mmx1 |
2.2mm±0.07 |
<240 |
PE(Black+Red) |
2500 |
55~85 |
Single core |
| 4 |
RS-1000-1Y |
1.0mmx1 |
2.2mm±0.07 |
<240 |
PE ( Yellow ) |
2500 |
55~85 |
Single core |
| 5 |
RS-1000-1G |
1.0mmx1 |
2.2mm±0.07 |
<240 |
PE ( Green ) |
2500 |
55~85 |
Single core |
| 6 |
RS-1000-1R |
1.0mmx1 |
2.2mm±0.07 |
<240 |
PE ( Red ) |
2500 |
55-85 |
Single core |
| 7 |
RS-0500-1 |
0.5mmx1 |
1.0mm±0.15 |
<280 |
PE |
1500/5000 |
55~70 |
Single cor |
| 8 |
RS-0500-1C |
0.5mm×1 |
1.0mm±0.15 |
≤250 |
PE |
1500/5000 |
55~85 |
Single core |
| 9 |
RS-0500-1C/125 |
0.5mm×1 |
.25mm±0.15 |
<250 |
PE |
1500/5000 |
55~85 |
Single care |
| 10 |
RS-0750-1C |
0.75mmx1 |
2.2mm±0.07 |
<200 |
PE |
2500 |
55-85 |
Single core |
| 11 |
RS-1000-1B/1.25 |
10mmx1 |
1.25mm±0.15 |
<200 |
PE |
1500/5000 |
55-85 |
Singie care |
| 12 |
RS-1000-1B |
1.0mmx1 |
2.2mm±0.07 |
<240 |
PE |
2500/5000 |
55~85 |
Single core |
| 13 |
RS-1000-1B |
1.0mm×1 |
2.2mm±0.07 |
<200 |
PE |
2500/5000 |
55~85 |
Single core |
| 14 |
RS-1000-1A |
1.0mmx1 |
2.2mm±0.07 |
≤160 |
PE |
2500/5000 |
55~85 |
Single core |
| 15 |
RS-1500-1/3.0 |
1.5mmx1 |
3.0mm±0.1 |
<240 |
PE/PVC |
700 |
55-85 |
Singfe core |
| 16 |
RS-2000-1/3.8 |
2.0mmx1 |
3.8mm±0.1 |
<240 |
PE/PVC |
350 |
-55~85 |
Single core |
| 17 |
RS-3000-1/4.5 |
3.0mm×1 |
4.5mm±0.1 |
<240 |
PE/PVC |
150 |
55~85 |
Single cofe |
| 18 |
RS-3000-1/5.0 |
3.0mmx1 |
5.0mm±0.1 |
≤240 |
PE/PVC |
150 |
-55~85 |
Single care |
Products Advantage
-
Cold light source,non-ultraviolet,without the acceleration of valuable.
-
Separation of light and electricity, safe and reliable application in flammable and explosive occasion.
-
Low power,energy saving and environment protection.
-
Flexible transmission, apply in plastic optic fiber lights and projects of POFdecoration, can produce courful and dream-like effect
-
Optical fiber display with low attenuation and high brightness,full color render,clear vision ,low power, easy recycle and long life etc.
|

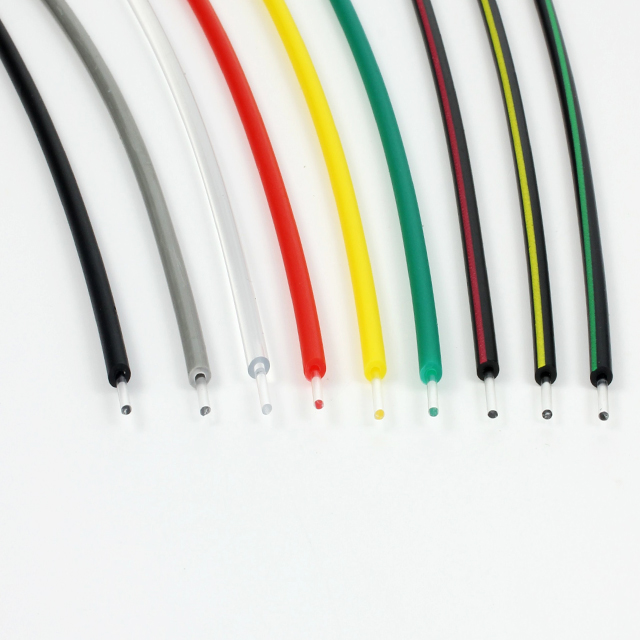

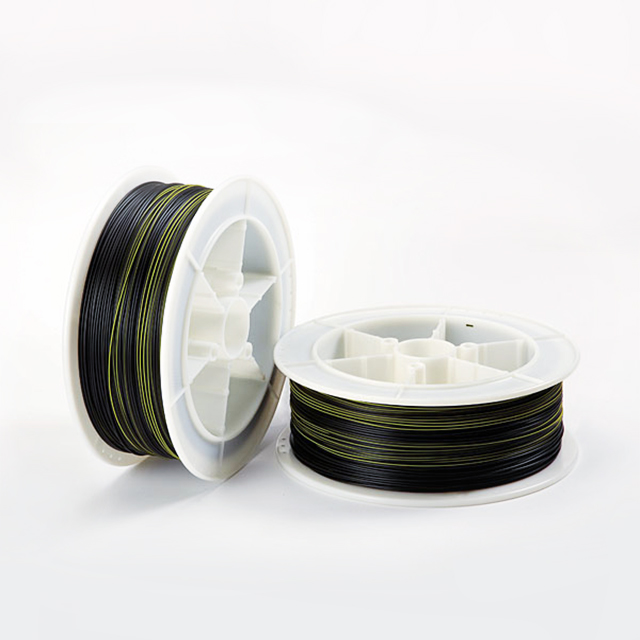

Detailed Images
